Part number
PE 16104 PI

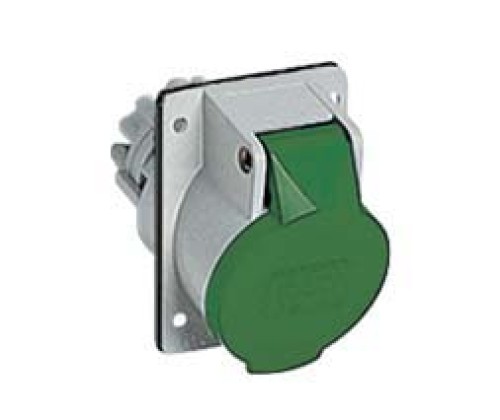

Brief description: bulkhead mounting housings, sockets, 3 poles + PE, 16 (A.C.), >50V, 10 green, inclined, IP44
Technical details
| Product description | |
| Model | sockets |
| Version | PLUSO, plugs and socket-outlets |
| Series | PE...PI |
| Product type | bulkhead mounting housings |
| Style | inclined |
| Family | plugs and socket-outlets |
| N. of poles | 3 poles +  |
| Clock position | 10
|
| Technical data | |
| Current | 16 A (A.C.) |
| Voltage | > 50 V |
| Frequency | 100 ÷ 300 Hz. |
| Operating temperature range (min, max) | -40°C … +125°C |
| Material | thermoplastic |
| IP degree of protection | IP44 |
| Further technical details | |
| Weight | 115,00 g |
| Approvals / Standards | |
| Reference standard | EN 60309-1 and -2 |
| Quality mark | EAC |
| General ordering information | |
| EAN13 code | 8015747062664 |
| Packaging Information | |
| Packaging length | 190,00 mm |
| Packaging height | 170,00 mm |
| Packaging width | 285,00 mm |
| Packaging weight | 1,35 kg |
| Packaging volume | 9,21 dm³ |
| Packaging description | Carton box |
| Packaging quantity | 10 Pcs |
| Packaging EAN code | 8015747062671 |
