- Design: Two coupling hubs are concentrically machined with curved jaws.
- Tolerance: Overall clearance between shaft and hub 0.01 to 0.05 mm.
- Material:
- clamping hub and clamping ring: up to series 450 high strength aluminum, series 800 and up steel
- elastomer insert: precision molded, wear resistant, and thermally stable polymer

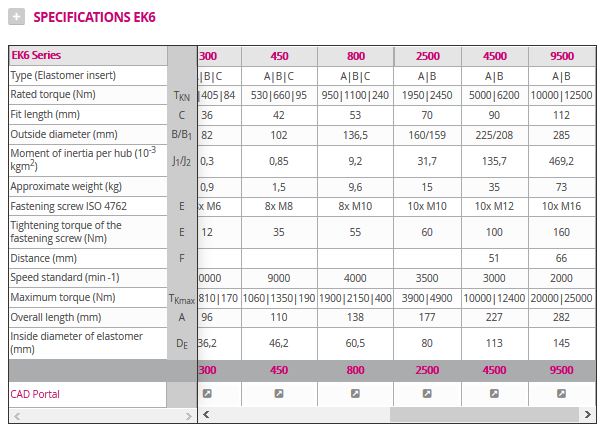

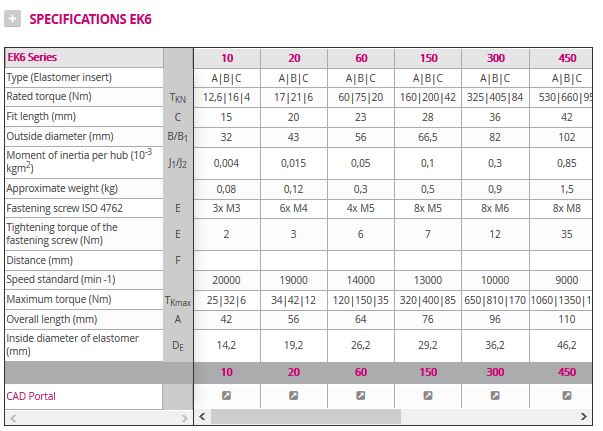

- Speeds: See table below *Please contact R+W

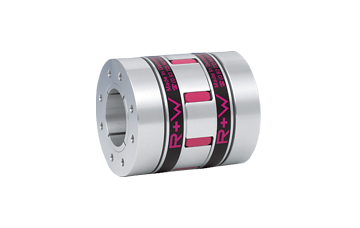

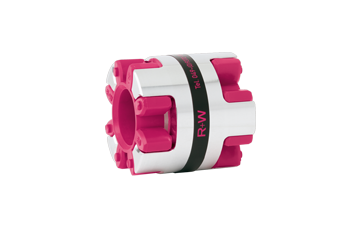

ISO 2.5 balance grade available - Properties of Elastomer Coupling model EK6:
- high clamping forces
- concentrically machined hubs
- vibration damping
- electrically isolating
- backlash free
- press fit design
- axial mounting possible
Product details
